Scott Speedster Gravel 10
$2,999.99
Details

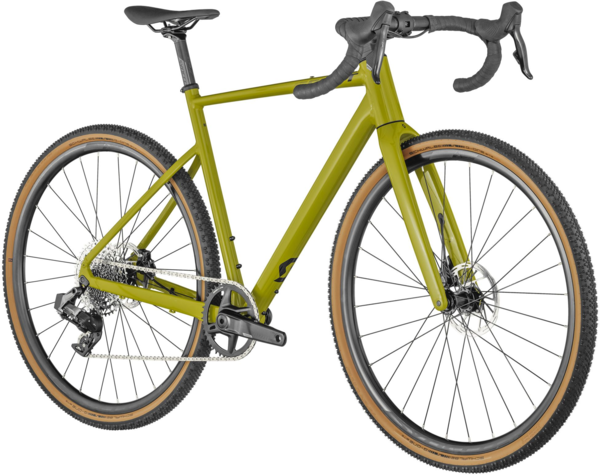

The SCOTT Speedster Gravel 10 is your one stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road!
Please note that bike specifications are subject to change without prior notice
| FRAME SIZE | XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 |
|---|---|---|---|---|---|---|---|
| A- HEAD TUBE ANGLE | 70.0 ° | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | 71.0 ° |
| B- HEAD TUBE LENGTH | 93.0 MM | 103.0 MM | 123.0 MM | 143.0 MM | 163.0 MM | 183.0 MM | 203.0 MM |
| C- TOP TUBE HORIZONTAL | 512.3 MM | 523.0 MM | 536.5 MM | 556.5 MM | 571.2 MM | 581.2 MM | 594.2 MM |
| D- STANDOVER HEIGHT | 747.0 MM | 762.0 MM | 786.0 MM | 806.0 MM | 825.0 MM | 844.0 MM | 869.0 MM |
| E- BB OFFSET | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM |
| F- BB HEIGHT | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM |
| G- WHEEL BASE | 1,019.5 MM | 1,026.9 MM | 1,037.7 MM | 1,044.9 MM | 1,056.4 MM | 1,067.0 MM | 1,071.3 MM |
| H- BB CENTER TO TOPTUBE CENTER | 430.0 MM | 450.0 MM | 480.0 MM | 500.0 MM | 520.0 MM | 540.0 MM | 570.0 MM |
| I- BB CENTER TO TOP OF SEATTUBE | 470.0 MM | 490.0 MM | 520.0 MM | 540.0 MM | 560.0 MM | 580.0 MM | 610.0 MM |
| J- SEAT ANGLE | 75.0 ° | 74.5 ° | 74.0 ° | 73.0 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| K- CHAINSTAY | 435.0 MM | 435.0 MM | 435.0 MM | 439.0 MM | 439.0 MM | 439.0 MM | 439.0 MM |
| L- REACH | 374.0 MM | 378.0 MM | 382.0 MM | 387.0 MM | 392.0 MM | 396.0 MM | 403.0 MM |
| M- STACK | 519.0 MM | 528.4 MM | 547.2 MM | 570.0 MM | 588.9 MM | 607.8 MM | 626.8 MM |
| N- STEM LENGTH | 73.0 MM | 83.0 MM | 93.0 MM | 103.0 MM | 103.0 MM | 113.0 MM | 113.0 MM |
Specs
| Frame | Speedster Gravel Disc / D.Butted 6061 Alloy |
|---|---|
| Fork | Speedster Gravel HMF Flatmount Disc |
| Rims | Syncros Race X25 Disc 28 Front / 28 Rear |
| Hubs |
Front: Formula Team XDR CL Disc 28 H Rear: Formula Team XDR CL Disc 28 H |
| Spokes | Black 2mm |
| Tires | Schwalbe G-One Bite Performance 700x45C |
| Bottom Bracket | SRAM DUB PF ROAD 86.5 |
| Crankset | SRAM RIVAL 1 WIDE Crankset 42 T |
| Shifters | SRAM RIVAL eTap AXS HRD Shift-Brake System |
| Rear Derailleur | SRAM RIVAL XPLR eTap AXS |
| Cassette/Freewheel | SRAM XPLR XG1251 10-44 |
| Chain | SRAM RIVAL |
| Brakes | SRAM RIVAL eTap AXS HRD Shift-Brake System |
| Rotors | SRAM Paceline rotor 160/F and 160/R |
| Handlebars | Syncros Creston 2.0 X Alloy 31.8mm |
| Stem | Syncros RR2.5 1 1/4" / four Bolt 31.8mm |
| Headset | Acros AIF-1133 |
| Seatpost | Syncros RR2.5 27.2/300mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Yellow / 47cm | 192820746296 | 290508047 | 210000024754 |
| Yellow / 49cm | 192820746302 | 290508049 | 210000024755 |
| Yellow / 52cm | 192820746319 | 290508052 | 210000024756 |
| Yellow / 54cm | 192820746326 | 290508054 | 210000024757 |
| Yellow / 56cm | 192820746333 | 290508056 | 210000024758 |
| Yellow / 58cm | 192820746340 | 290508058 | 210000024759 |
| Yellow / 61cm | 192820746357 | 290508061 | 210000024760 |
